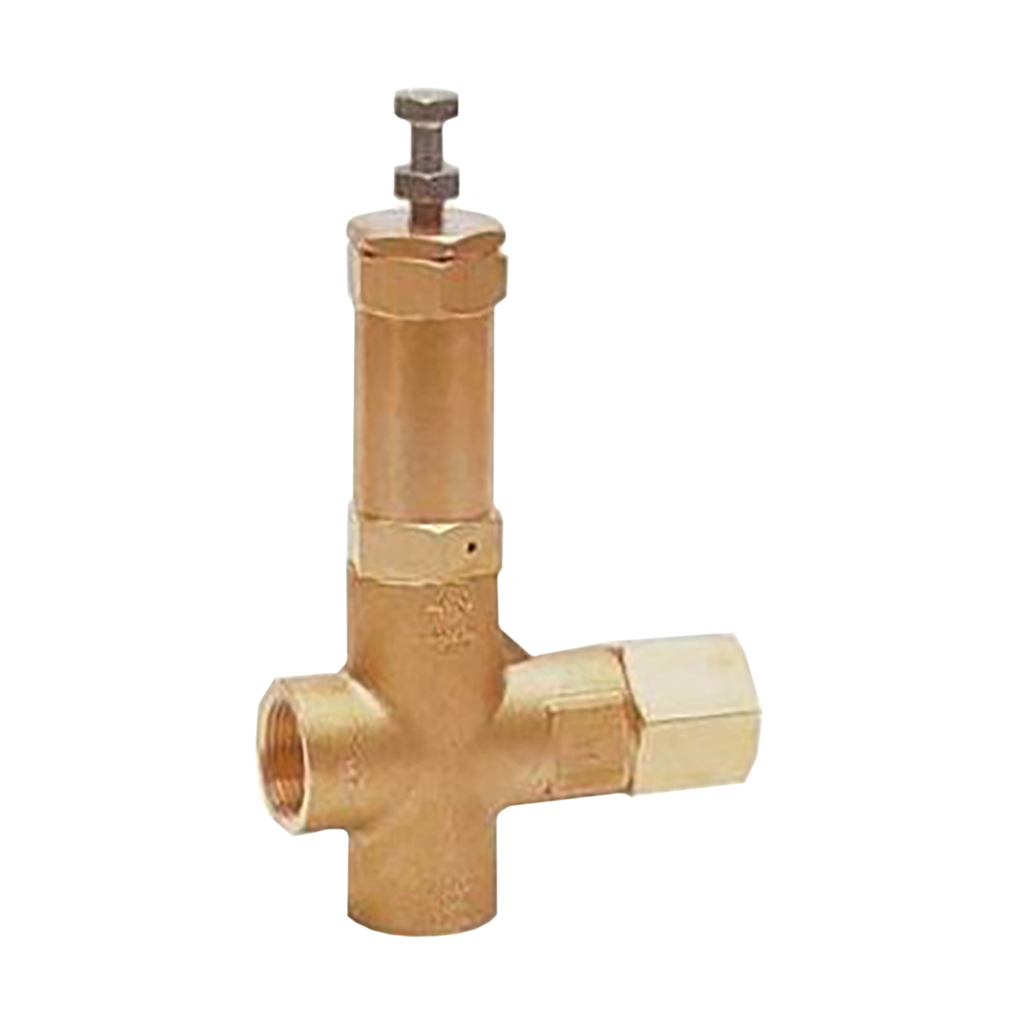

General Pump Brass Body Regulator Unloader 2200 Psi

Item No. P857099
General Pump Brass Body Regulator Unloader 2200 Psi This product is intended to be incorporated on a finished machine. This product is to be used with clean fresh water, for use involving different or corrosive liquids, contact the GP Customer Service Department. Appropriate filtration should be
Read full description
Price
$298.79
excl. tax
This product cannot be ordered at the moment.
Description
General Pump Brass Body Regulator Unloader 2200 Psi

This product is intended to be incorporated on a finished machine. This product is to be used with clean fresh water, for use involving different or
corrosive liquids, contact the GP Customer Service Department. Appropriate filtration should be installed when using impure liquids. Choose the valve appropriate to the working data of the pump (permissible pressure, flow and rated temperature of the system). The pressure of the pump must not exceed the maximum pressure of the valve. The valve regulates the maximum pressure of the system by varying the flow discharged by the bypass. The adjustment is made by altering, by means of a piston, the position of a sphere which partially closes the bypass opening. The valve is sensitive to water flow. At gun opening, the water flows through the valve which maintains the system in pressure until the gun closes, the interruption of the flow provokes the complete aperture of the bypass which allows to discharge the flow at low pressure. At gun closure, the special mechanism of zero setting, which does not include a check valve, keeps in connection the delivery line and the bypass line, in that way permitting to lower the pressure all around the system and not only in the source line of the valve.


~Inlet, Outlet & By-Pass Ports: 1" FPT
~Max Volume: 52.5 GPM
~Max Pressure: 2175 PSI
~Max Temperature: 194°F
~Weight: 4.5 LBS

Mfr Catalog No. YU5221
