Hydro System Model 564 HydroMinder High Volume No Siphon Breaker
Keep any reservoir filled with consistently mixed solution without pouring, stirring, waiting or downtime

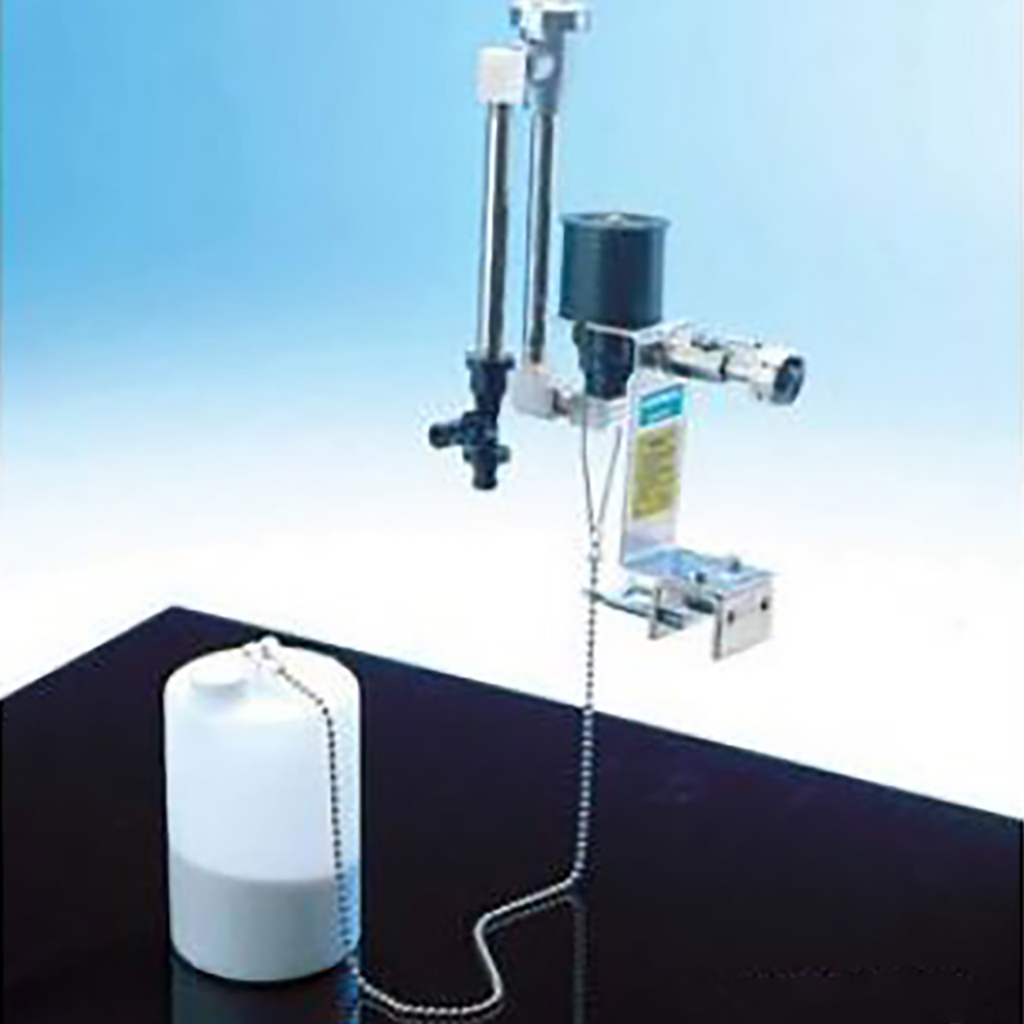

When the solution level in a reservoir drops, the HydroMinder’s float opens a non-electric, magnetic valve. The flow of water siphons liquid concentrate into the water stream, automatically maintaining the level of ready-to-use solution. (Models are available for maintaining a tank of plain water, too.) When the tank reaches the preset fill level, the HydroMinder shuts off.
~564 HydroMinder automatically mixes concentrated liquid chemicals with water and maintains the solution level in the mixing tank
~No manual mixing by hand required
~When the solution level in the tank drops, the float activates a nonelectric, magnetic valve which allows water to enter the proportioner.
~The flow of water creates a suction that draws the concentrated chemical into the flow of water at the prescribed dilution ratio
~As the tank fills, the float shuts off the water flow, maintaining the level of ready-to-use solution
~Built with high quality, chemically resistant materials
~Dilution range: 1024:1 to 8:1
~Flow rate: +25 gpm
~Mounting bracket included
~No siphon breaker
Mfr Catalog No. 564hydrominder
