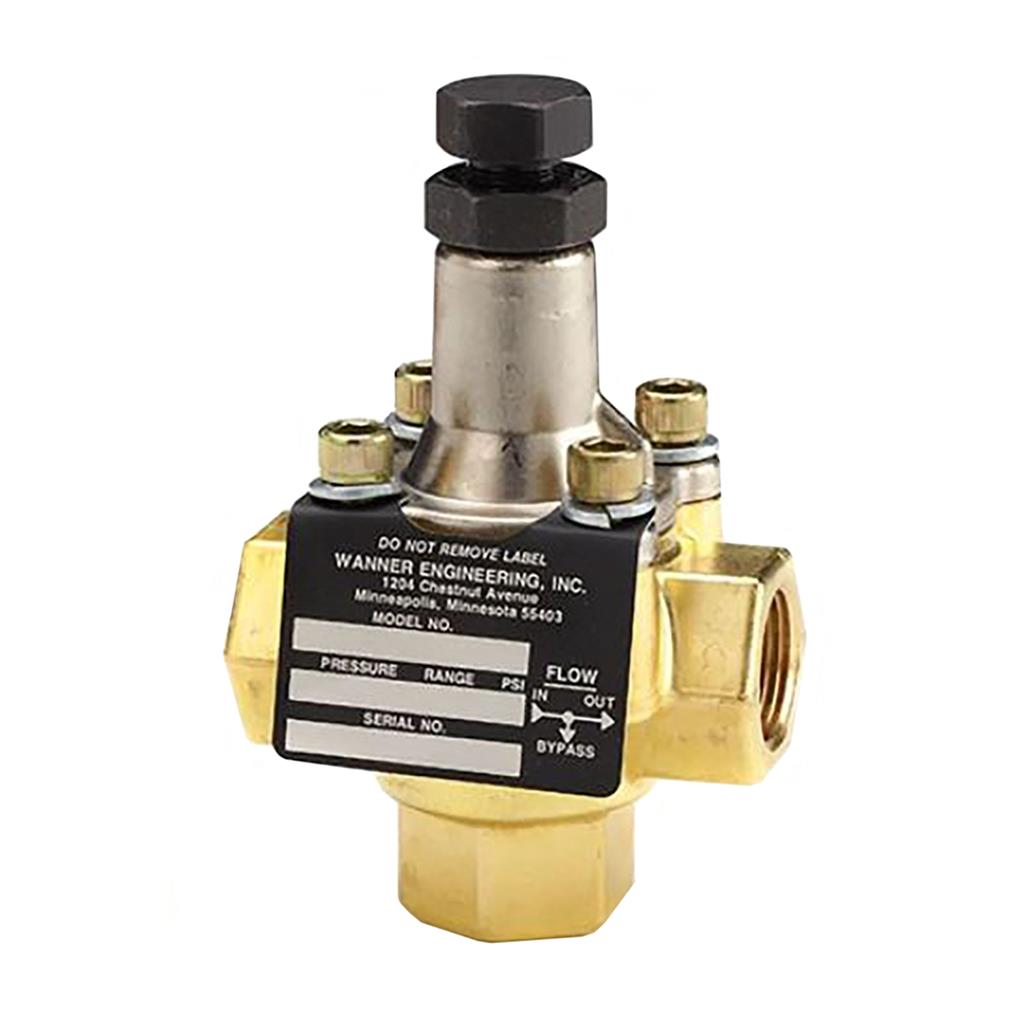

Wanner Pumps Hydra-Cell Model C22AC Bypass Pressure Regulating Valve 3/4 Inch

Item No. P857065
Wanner Pumps Hydra-Cell Model C22AC Bypass Pressure Regulating Valve 3/4 Inch Designed for use with any positive displacement pump, Hydra-Cell C Series pressure regulating valves bypass system fluid to prevent excess system pressure. They can also be used as pressure relief valves. C Series
Read full description
Price
$233.77
excl. tax
This product cannot be ordered at the moment.
Description
Wanner Pumps Hydra-Cell Model C22AC Bypass Pressure Regulating Valve 3/4 Inch

Designed for use with any positive displacement pump, Hydra-Cell C Series pressure regulating valves bypass system fluid to prevent excess system pressure. They can also be used as pressure relief valves. C Series Hydra-Cell Valves bypass system fluid to prevent excess system pressure. When a system discharge is completely closed – such as a closed spray gun, closed valved or plugged nozzle – the Hydra-Cell Valve bypasses the total system fluid flow. They also balance system pressure for multiple-gun operations. The Hydra-Cell Valve design is simple: a tapered plunger with a valve seat. When excess pressure overcomes the adjustable spring pressure on the plunger, the plunger lifts off the seat, allowing fluid to bypass and reduce system pressure. When a Hydra-Cell Valve is mounted in the discharge line, its modified flow-through design reduces wear on the plunger and seat. Baffles on either side of the plunger and seat extend life by directing the flow around these internal components. For service, simply remove the top of the body and replace the worn internal components. Hydra-Cell Valves can be serviced in place without removing any fittings or plumbing. C22, C23, and C24 Series Hydra-Cell Regulating Valves are available in a choice of stainless steel, nickel alloy or solid brass materials and accommodate 3/4”to 1-1/4” NPT/BSPT plumbing.


~Accurate, repeatable
~Minimal pressure surge
~Smooth, chatter-free bypass
~Adjustable
~Easy to service
~No external springs or moving parts
~Various seal material
~Stainless steel or brass bodies
~Used with any positive displacement pump

Mfr Catalog No. C22ACBNSSEF
